Ultra-Short New Material Cantilevers Properties

The USC-NM Cantilevers have been characterized by different laboratories. They determined their Resonance Frequencies by measuring their Thermal Noise Spectra and defined their Force Constant by Thermal Tune or Sader methods.

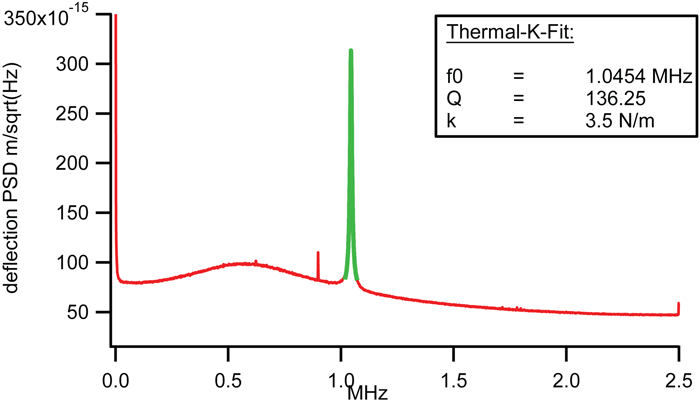

Graph 1: Characterization of a 12 x 3.5 x 0.2 μm3 USC-NM CB in air

Measurements by C. Braunsmann, University of Erlangen-Nuremberg, Germany

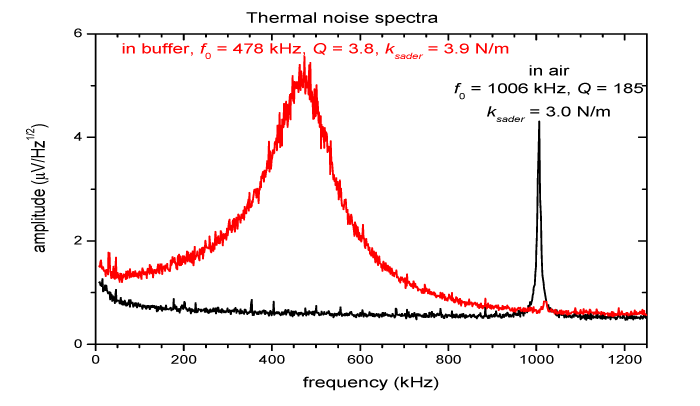

Graph 2: Characterization of a 22 x 8 x 0.65 μm3 USC-NM CB in air and in liquid

Measurements by P. Frederix, Biozentrum Basel, Switzerland.

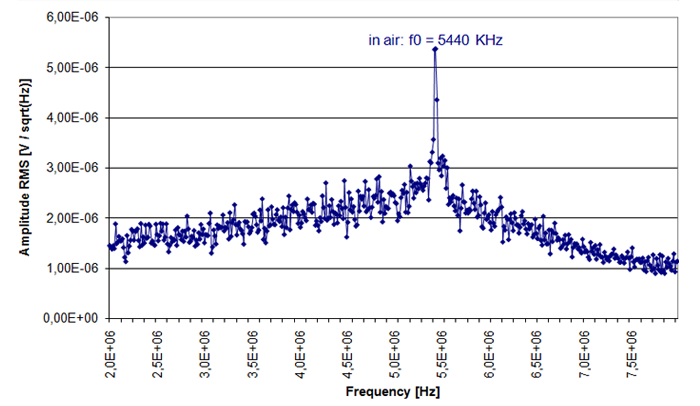

Graph 3: Characterization of a 10 x 5 x 0.68 μm3 USC-NM CB in air

Measurements by B. Hoogenboom, University College London, UK.

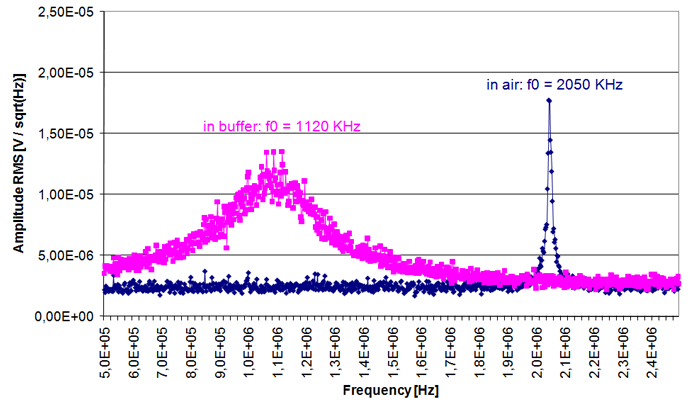

Graph 4: Characterization of two 10 x 5 x 0.28 μm3 USC-NM CBs in air and in liquid

Measurements by B. Hoogenboom, University College London, UK.

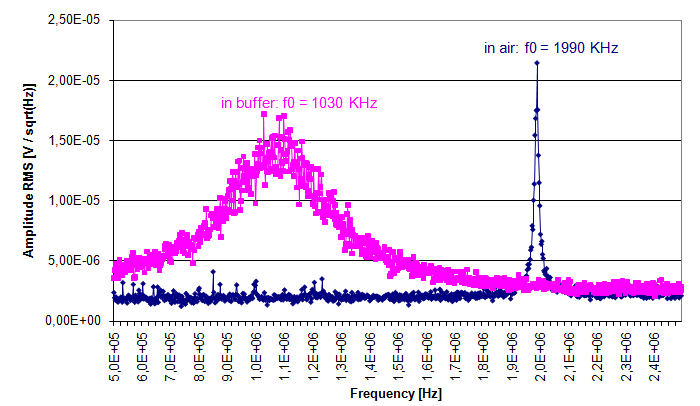

Graph 5: Characterization of two 10 x 5 x 0.28 μm3 USC-NM CBs in air and in liquid

Measurements by B. Hoogenboom, University College London, UK.
